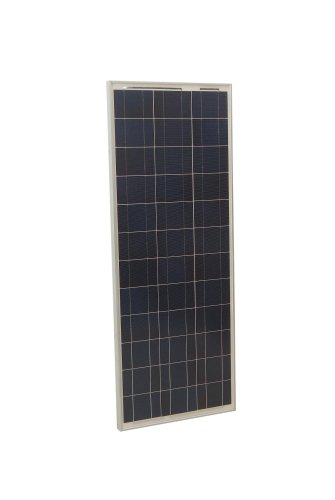

Solartech Power 80 Watt 12 Volt Solar Panel RV Style

SPECIFICATIONS:

Power at STC(Pm) 80W

Maximum power voltage(Vpm) 17.3V

Maximum power current(Ipm) 4.7A

Open circuit voltage(Voc) 21.9V

Short circuit current(Isc) 5.1A

Tolerance ±5%

Maximum system voltage 1000V DC

Multicrystalline silicon solar
cell, (156mmx104mm)

No. of cell and connection 36(3×12)

Dimensions: 52.4 x 20 x 1.38 (in)

Weight 19.8 lbs

Cable Length: 3ft.
